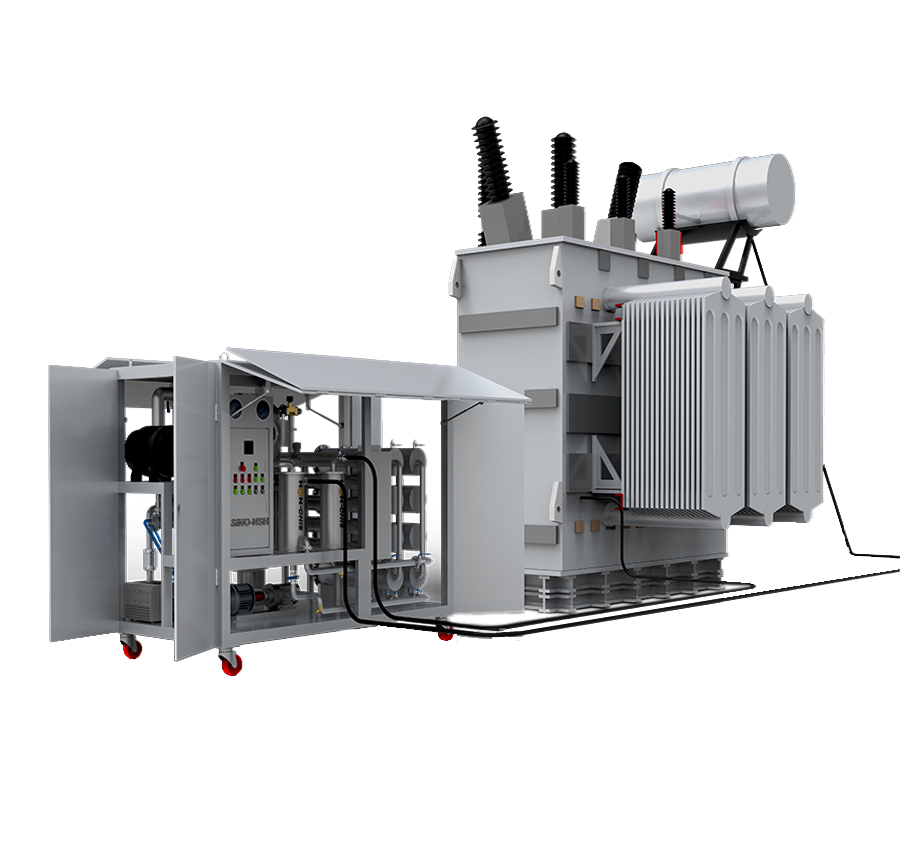

Deep Technical Analysis: Double-Stage Vacuum Oil Purification for Transformers Above 110kV

For high-voltage (HV) and extra-high-voltage (EHV) electrical systems—specifically those operating at 110kV, 220kV, 500kV, and 750kV—the dielectric integrity of the insulation oil is the most critical factor in preventing catastrophic failure.

At these voltage levels, even microscopic amounts of moisture or dissolved gas can trigger a partial discharge, leading to internal arcing and transformer explosion. This is why a Double-Stage High-Vacuum Transformer Oil Purifier is the mandatory industry standard for maintenance, installation, and repair.

I. The Core Distinction: Why "Double-Stage" is Essential

A single-stage vacuum purifier utilizes a single rotary vane vacuum pump, which typically reaches a limit of approximately $100 \sim 500$ Pa. For transformers above 110kV, this is insufficient.

The Double-Stage System incorporates a Roots Booster Pump in series with the primary vacuum pump. This architectural shift provides two decisive advantages:

1. Extreme Vacuum Depth: It achieves a working vacuum of $\leq 5$ Pa (and a limit vacuum of $\leq 3$ Pa). At this pressure, the boiling point of water drops significantly, allowing for the removal of even tightly bound "dissolved" water molecules.

2. Increased Pumping Speed: The Roots pump drastically increases the "liters per second" evacuation capacity. This is vital when performing Vacuum Drying and Vacuum Oil Filling on large-scale transformer tanks during field commissioning.

II. Advanced Technical Features & Sub-Systems

To ensure the oil meets the stringent requirements of power utilities, these machines utilize several specialized technologies:

1. Three-Dimensional (3D) Flash Evaporation

Unlike simple sprayers, high-end units use 3D evaporation towers with specialized "T-shape" or "flower" nozzles. This creates a massive oil surface area, allowing moisture and gases to be pulled out of the oil film instantly as it cascades through the vacuum chamber.

2. Multi-Stage Gradated Filtration

（1）Primary Filter: Stainless steel mesh ($80 \sim 100 \mu m$) to protect the oil pump from large debris.

（2）Secondary Filter: High-precision pleated element ($10 \sim 20 \mu m$).

（3）Fine Filter: Uses high-molecular-weight polymers or fiberglass with a precision of 1 micron. This captures fine carbon particles and sludge generated by aging or electrical stress.

3. Low-Density Carbon Fiber Heating

Transformer oil is sensitive to thermal "cracking." Modern purifiers use a "low-watt-density" heating design (less than $1.5$ $W/cm^2$). This ensures the oil is heated to the optimal $45^\circ\text{C} \sim 65^\circ\text{C}$ for evaporation without scorching the oil molecules or degrading the additives.

III. Performance Standards for 110kV+ Applications

After processing with a high-performance double-stage unit, the oil parameters must meet or exceed the following benchmarks:

IV. Strategic Operational Benefits

• Online and Offline Versatility: These units can be used for "Live Line" oil circulation (with specialized safety interlocks) or for offline deep-cleaning during scheduled outages.

• Body Vacuuming: The high-capacity vacuum system can be used independently to evacuate the air from the transformer tank before oil injection, ensuring no air bubbles are trapped in the windings.

• Cost Efficiency: Extending the life of the insulation oil significantly delays the need for expensive oil replacement and protects the multi-million dollar transformer asset.

Professional Recommendation for Procurement

When selecting a unit for 110kV+ projects, ensure the machine includes:

• An integrated Digital Vacuum Gauge and PPM Moisture Monitor.

• PLC Automation for safety (anti-leak sensors and automatic foam control).

• A certified Roots-Pump/Vacuum-Pump combination with a pumping speed exceeding $150$ $L/s$.
