Transformer Oil Filtration Guide: When Should You Stop the Machine?

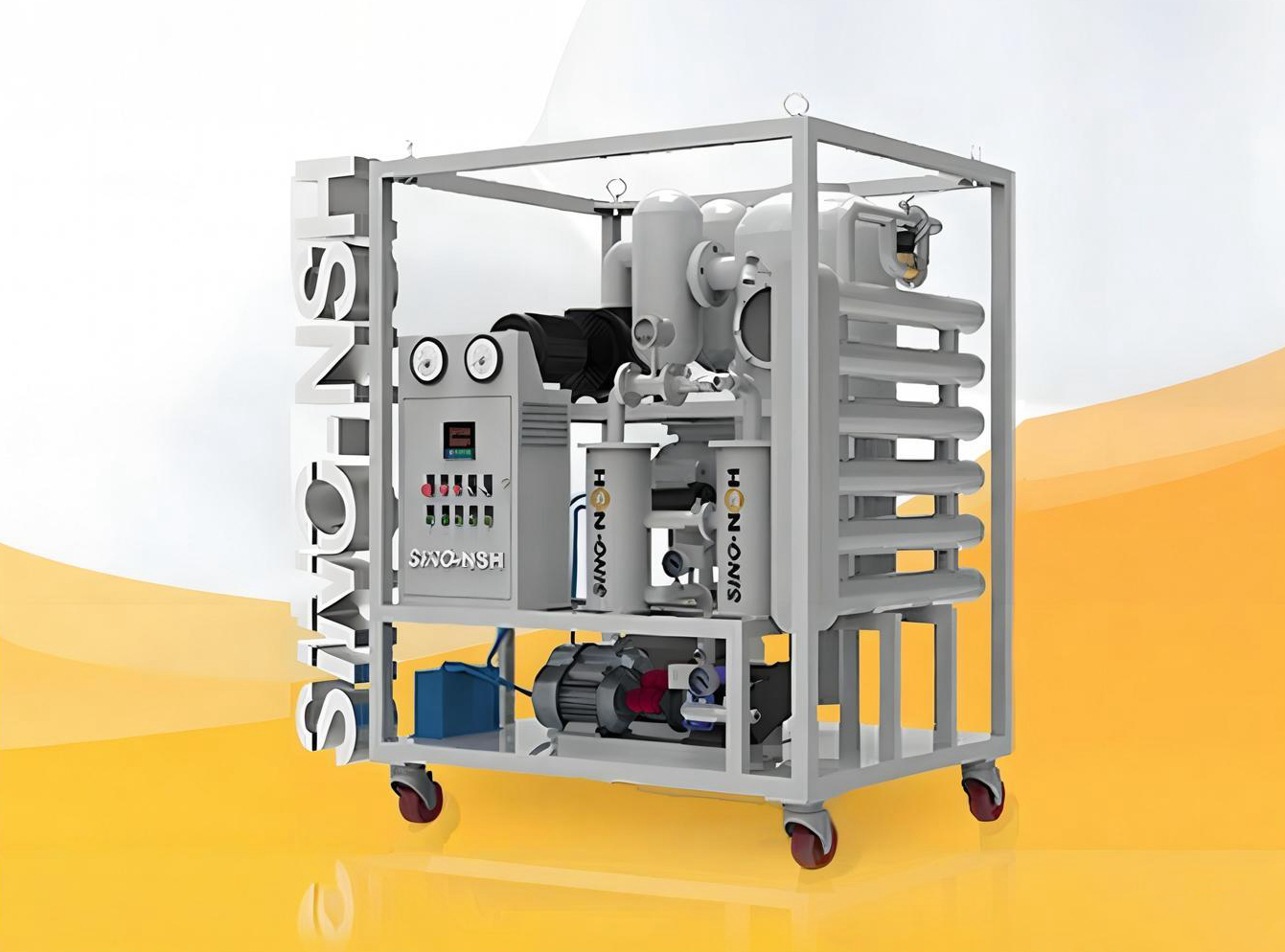

Abstract: Proper operation of a Vacuum Oil Purifier (VUP) is critical for maintaining the dielectric integrity of power transformers. This guide outlines the mandatory shutdown protocols—categorized by standard completion, equipment malfunction, and environmental hazards—to ensure personnel safety and equipment longevity.

1. Normal Operational Shutdown (End of Cycle)

A controlled shutdown is required once the dielectric properties of the insulating oil meet the specified thresholds.

• Target Parameters Reached: The oil passes laboratory or onboard testing for Dielectric Breakdown Voltage (BDV), moisture content (PPM), and gas content (DGA) according to IEC 60422 or IEEE C57.106 standards.

• Cycle Completion: The oil has undergone the calculated number of passes required for the specific transformer volume.

• Color & Clarity: Visual inspection confirms the removal of carbon particles and sludge, restoring the oil to a clear, bright state.

2. Emergency Shutdown: Equipment Malfunctions

If any of the following "Red Flags" occur, the Emergency Stop (E-Stop) must be engaged immediately to prevent catastrophic failure:

A. Loss of Vacuum Integrity

• Symptom: A sudden ｄｒｏｐ in vacuum levels or the inability to maintain the set millibar (mbar) or Torr.

• Root Cause: Usually indicative of a failed seal, a saturated vacuum pump, or a leak in the intake manifold.

B. High Pressure & Filter Clogging

• Metric: Discharge pressure exceeding $0.4\text{ MPa}$ ($4\text{ bar}$ / $58\text{ PSI}$).

• Risk: High differential pressure can cause filter element bypass or rupture, re-contaminating the transformer with particulates.

C. Oil Level Instability (Foaming/Flooding)

• Symptom: Oil levels in the vacuum chamber rise uncontrollably, bypassing the infrared sensors.

• Risk: This leads to "Oil Carryover" into the vacuum pump, which can destroy the pump motor and cause environmental oil spills.

D. Electrical & Thermal Anomalies

• Heating Failure: Oil temperature exceeding $80^\circ\text{C}$ ($176^\circ\text{F}$), which triggers thermal degradation of the oil.

• Mechanical Noise: Abnormal grinding or cavitation sounds from the discharge pump or vacuum pump.

3. Environmental & External Site Risks

International safety standards (OSHA/HSE) dictate shutdown under the following field conditions:

4. Pro-Tip: The "Cool-Down" Shutdown Sequence

To maximize the lifespan of your machine, never cut the main power abruptly. Follow this Industry Standard Sequence:

1. Deactivate Heaters: Turn off the heating elements but keep the oil circulating for 5-10 minutes. This prevents the oil from "cracking" or carbonizing on the stagnant heating rods.

2. Vent the Vacuum: Slowly open the air inlet valve to equalize the chamber pressure with the atmosphere.

3. Power Down Pumps: Stop the vacuum pump first, followed by the oil discharge pump.

4. Drainage: If the unit will be idle in sub-zero temperatures, drain all residual water from the condenser to prevent freezing damage.

FAQ: Quick Reference

Q: Can I perform a shutdown while the transformer is energized?

A: Yes, but only if the unit is equipped with an Automatic Inlet/Outlet Solenoid System to ensure the transformer's oil level remains constant during the transition.

Q: Why is $60^\circ\text{C}$ to $70^\circ\text{C}$ the "Sweet Spot" for filtration?

A: This temperature range optimizes the surface tension for water evaporation without risking the thermal oxidation of the base oil.
