Why Transformer Oil Remains Cloudy After Filtration: Root Causes and Solutions

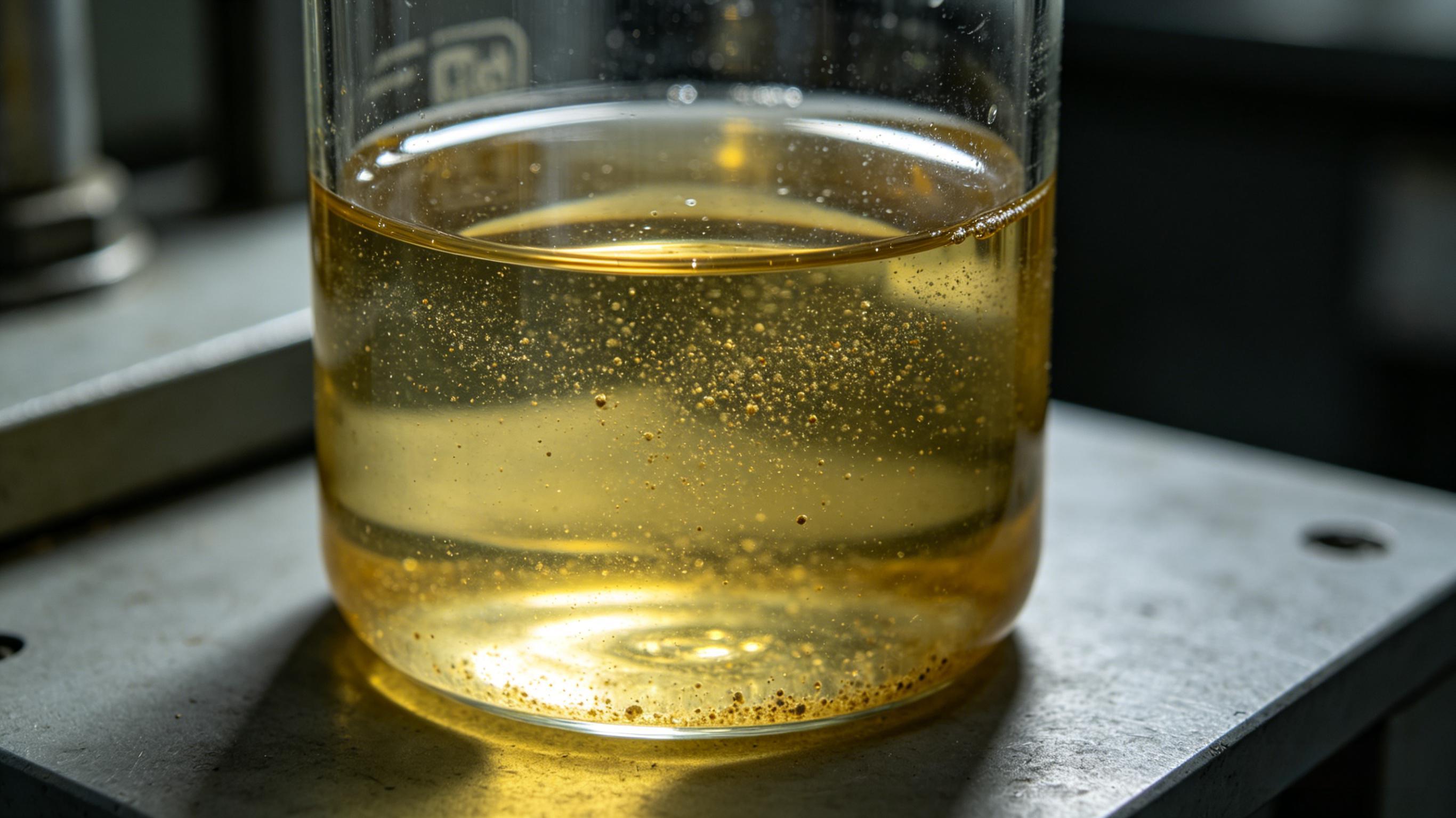

Cloudiness in transformer oil after filtration is a common frustration, often indicating that while some contaminants were removed, the root cause of the turbidity remains unaddressed. In most cases, "cloudy" or "milky" oil is a symptom of emulsified water or ultra-fine colloidal carbon, which standard mechanical filtration might struggle to eliminate.

Here are the primary reasons why your oil may still appear cloudy:

1. High Moisture Content (Emulsified Water)

If the oil has a milky or opaque appearance, the most likely culprit is water that has been chemically emulsified into the oil.

• The Limit of Mechanical Filters: Standard particulate filters (even those rated at 1 micron) cannot remove dissolved or emulsified water.

• The Solution: You need a Vacuum Degassing and Dehydration system. This process heats the oil and exposes it to a vacuum, lowering the boiling point of water and allowing it to evaporate out of the oil. If your current machine lacks a high-performance vacuum chamber, the moisture will remain.

2. Presence of Colloidal Carbon or Sludge

Transformer oil subjected to severe arcing or long-term overheating develops microscopic carbon particles.

• The "Haze" Effect: These particles are often smaller than 1 micron. If your filter elements are too coarse (e.g., 5–10 microns), these sub-micron particles pass right through, leaving a persistent "haze."

• The Solution: Use high-precision composite filter elements with a rating of 1 micron or less. Additionally, if the oil is aged, "sludge" (oxidation byproducts) can stay suspended in the oil, requiring chemical regeneration (Fuller's Earth) rather than just mechanical filtration.

3. Dissolved Gases and Air Bubbles

Sometimes, what looks like cloudiness is actually a massive amount of tiny air bubbles (micro-aeration).

• The Cause: This often happens if there is a leak in the pump’s inlet seal or if the oil was processed at a very high flow rate, causing cavitation.

• The Test: Let a sample of the oil sit in a clear glass for 30 minutes. If it clears from the bottom up, the "cloudiness" was simply entrained air.

4. Cold Temperatures

If you are filtering oil in a cold environment, the cloudiness might be caused by wax crystals or moisture precipitating out because the oil’s "water solubility" decreases as it cools.

• The Solution: Ensure the oil is heated to 50°C–60°C during the filtration process. This lowers the viscosity, helps the water separate, and ensures that any waxes remain dissolved.

Comparison of Oil Clarity

Technical Checklist for Troubleshooting:

1. Vacuum Level: Check if your vacuum pump is reaching its target (e.g., $\leq 133$ Pa). If the vacuum is weak, dehydration fails.

2. Filter Integrity: Inspect your filter cartridges. If a seal is broken inside the filter housing, oil will bypass the media entirely.

3. Dielectric Strength (BDV) Test: If the oil is cloudy but the BDV (Breakdown Voltage) is still low, water is almost certainly the issue. If the BDV is high but it’s still hazy, it is likely fine carbon or oxidation products.
